DIY Voice Control Smart Space Heater using Sonoff TH16 | DIY Holiday Projects
Let’s make a voice control smart space heater using Sonoff TH16 this summer holiday. Smart Space Heater is the best DIY holiday project idea to make life easier.
Sonoff TH16 is best Wifi Smart Wireless Switch which Supports Temperature And Humidity Monitoring. It also allows you to create simple conditional statement (Smart Scene) to trigger on/off other smart devices such as electric fan, air conditioner, space heater or room heater, humidifier, smart fish tank, watering system, etc. This means users can use Sonoff TH16 with Si7021, DS18B20, AM2301 sensor to sense temperature and humidity, and then set specified temp. or hum. ranges as conditions to trigger on/off other devices using eWeLink app.
Highlights of DIY Smart Space heater
- Saves money by keeping energy use low
- Control space heater from anywhere using the app on your android iPhone or
- Works with alexa, google home and IFTTT.
- Designed to be compatible with most home wiring
- Connect with other home appliances using Sonoff Basic, Sonoff RF, Sonoff SV, S20.

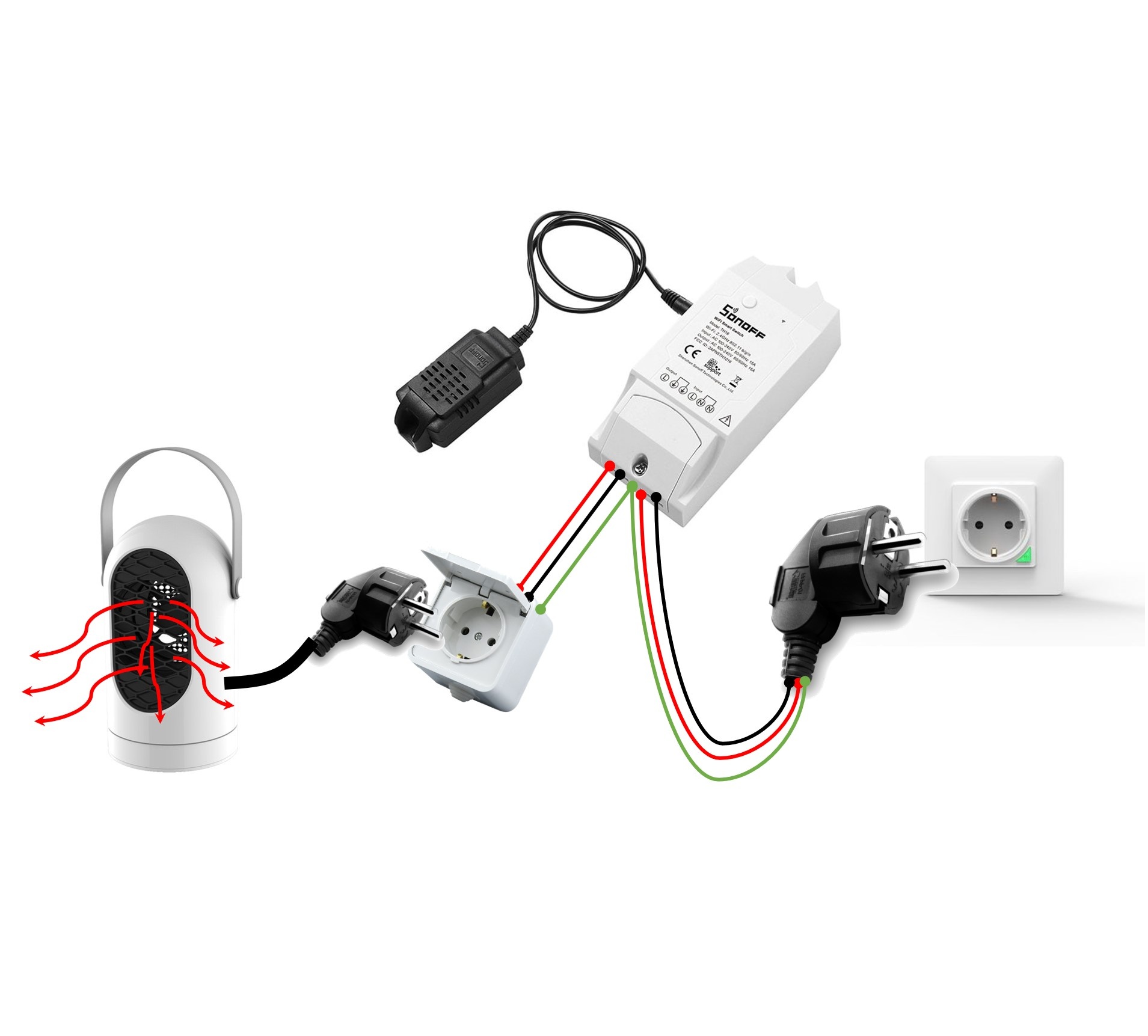

Smart Space Heater using Sonoff TH16 Wiring Diagram
Get Everything You Need to complete Voice Control Smart Space Heater
The ecobee3 lite smart thermostat and its companion app on your iPhone or iPad help you live better, while reducing your annual heating and cooling expenses. With its beautiful design, easy-to-use touchscreen display, and HomeKit compatibility, the ecobee3 lite helps make your home smarter and more comfortable without costing you or planet Earth.
Sonoff TH16 is a Wifi control temperature and humidity monitoring smart switch which can remotely monitor and set temperature and humidity range to turn on or off connected electrical appliances through the iOS/Android mobile App eWeLink. Just as the name indicates, the Sonoff TH16 supports maximum current supply up to 15A. For lower range Sonoff TH10 available with 10A capacity.
AM2301 sensor module which work with the Sonoff TH10A and TH16A for Temperature And Humidity Monitoring. AM2301 is a capacitive digital temperature and humidity sensing module. It has been calibrated to give digital signal output of the temperature and humidity sensor to sonoff. this sensor comes with 3.5mm jack is compatible with sonoff TH16.
Space Electric Heater you need as per your space requirements. As a rule of thumb, you can select roughly 10 watts of power for every square foot. First decide your application area and acordingly selct your space heater
- Desk Surface Space heater [portable]
- Room Heater
We have limitaiton to select wattage of heater, for sonoff TH16 you can use max up to 3500W space heater, if supply voltage is 110v with cosidering 20% safety current rating. Also, you have to use heavy-duty copper wire atlist 2.5mm-square gauge.
Connection Socket/Power Outlet helps you to connect space heater without breaking its original power cords wires. Must consider power rating of socket upto 16A 250V. Power Cable Connector standards are different for different region please select wisely as per your country standard.
Check wiki: AC plug type on
4. 2 pin or 3 pin AC Electrical Power Rewireable Male Plug Sockets
Two pin or three pin AC Electrical Rewireable Male Plug Sockets for Extension Cord Connector is must to connect sonoff to main AC outlet of home.
Must consider power plug rating of upto 16A 250V 4000W. Power plug Connector standards are different for different region please select wisely as per your country standard.
